Simplicity and effectiveness against pests in wood

Lightweight & Flexible

6 interchangeables waveguide parts to reach anyplace

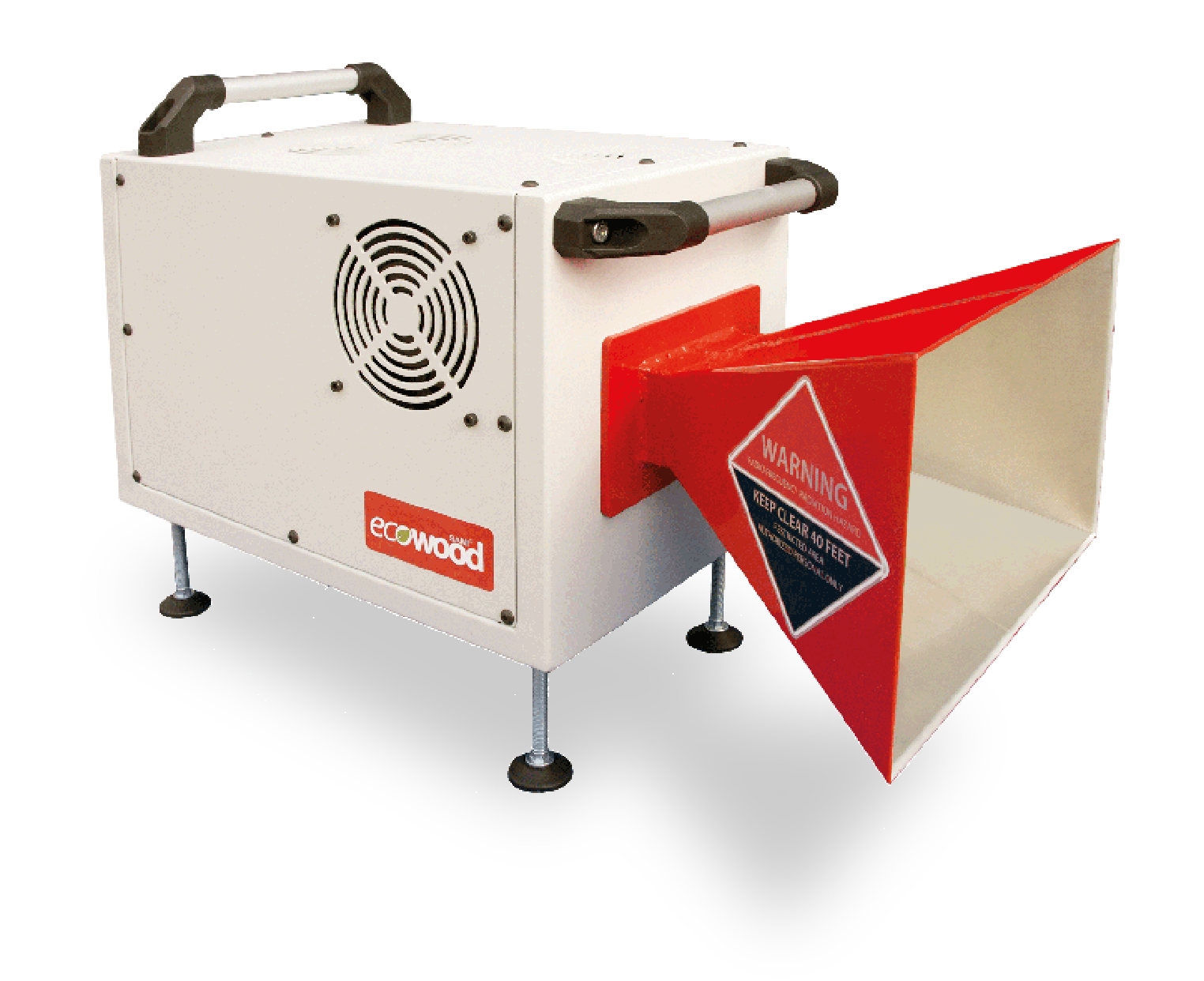

SAMI TECH Ecowood

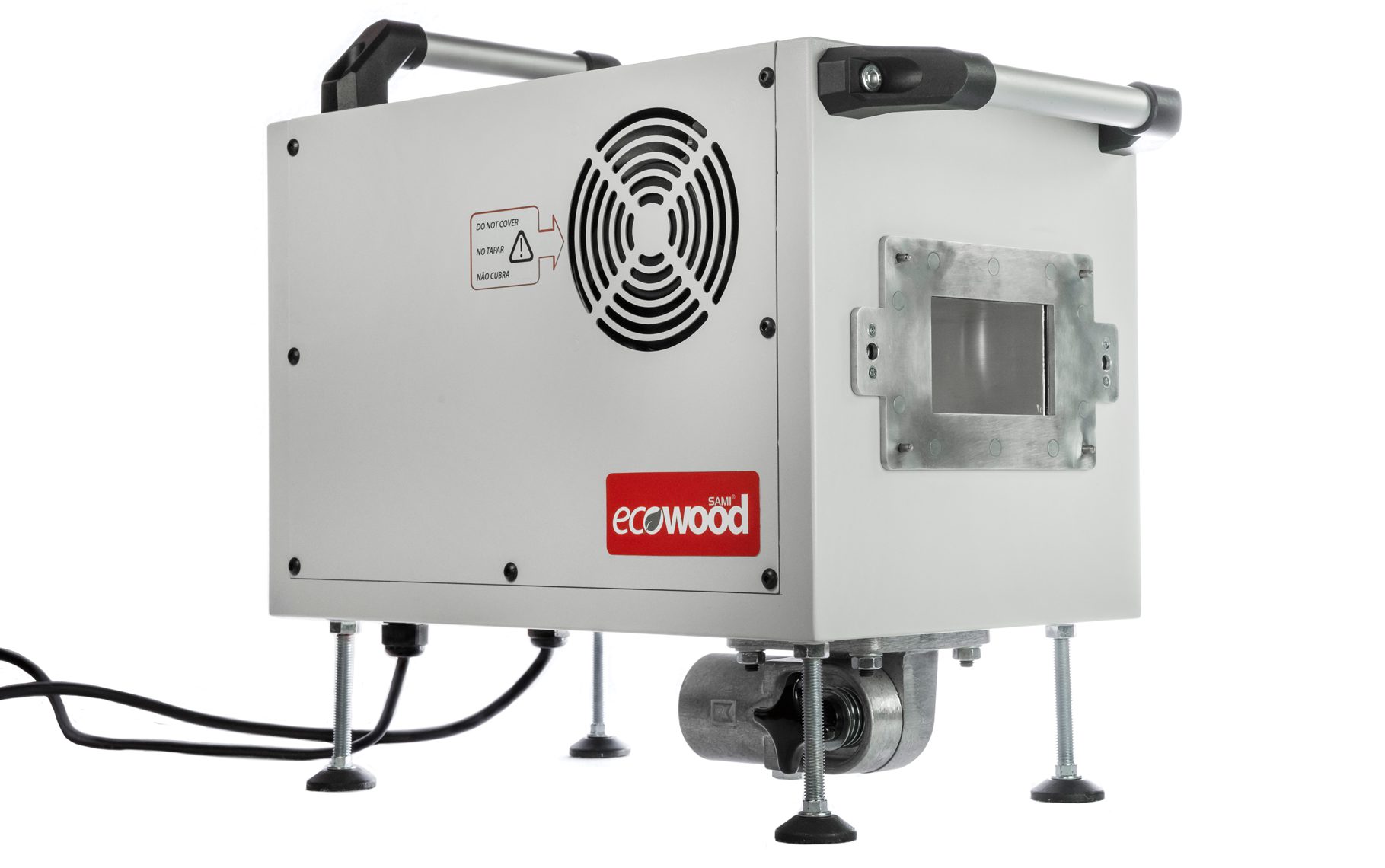

Model EW1100L6SW Flexible Unit
EW1100L6SW Model

Technical Specifications

Material Aluminum
Color Body frame: White
Dimensions of the body 400x270x250 mm / 15 ,75”x10,63”x9,84”
Short wave generators 1
Magnetron max. power 1350 W / 1600 W
Magnetron frequency 2465 MHz
CA power supply 230-50Hz / 120V-60Hz
Max. power consumption 165 0W – 7.5A / 1800W –  14.8A
Packaging  770x370x460mm / 30,31”x14,57“x18,11”
Packaging type Heavy duty 3 layer corrugated cardboard
Weight 14,44 Kg. / 31,83 pounds
Model EW1100L6SW Accessories

Now you can reach any place thanks to its 6 interchangeable wave guide parts, that allows multiple positions and lenghts.

WG400
Bend e-plane

Waveguide 400mm

Code: WG400

Description: straight waveguide with flanges at each end.

Features: Length 15,75 inches (400mm). Internal dimensions: 3,9 x 2,15 inches (99×54,64mm)

Material: Aluminum

Waveguide 800mm

Code: WG800

Description: straight waveguide with flanges at each end.

Features: Length 31,5 inches (800mm). Internal dimensions: 3,9 x 2,15 inches (99×54,64 mm)

Material: Aluminum

Waveguide Bend e- plane

Code: BEND001

Description: Elbow 90 ° change in the direction of the transmission waveguide.

Features: Internal Dimensions: 3,9 x 2,15 inches (99×54,64mm)

Material: Aluminum

Waveguide Bend h-plane

Code: BEND002

Description: Elbow 90 ° change in the direction of the transmission waveguide.

Features: Internal Dimensions: 3,9 x 2,15 inches (99×54,64mm)

Material: Aluminum

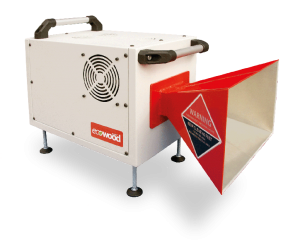

Antenna 30x20mm Aluminum

Code: ANTENNA001

Description: Horn Antenna type for applications up to 11,81 x 7,87 inches (300x200mm)

Features: Interior Dimensions End 1 : 3,9 x 2,15 inches (99×54,64mm). End 2 Dimensions: 11,81 x 7,87 inches (300x200mm)

Material: Aluminum

Antenna 30×10 Aluminum

Code: ANTENNA002

Description: Horn Antenna type for applications up to 11,81 x 3,94 inches (300x100mm).

Features: Interior Dimensions End 1 : 3,9 x 2,15 inches (99×54,64mm). End 2 Dimensions: 11,81 x 3,94 inches (300x100mm)

Material: Aluminum

Easy Assembling
Advantages
Ecowood’s Accessories

Application and mobility accessories:

These are metallic elements for placement, support and mobility designed and adapted to facilitate and improve the wood treatment experience using SAMI® Ecowood equipment.

Tripod Articulation UnitTripod
Tripod Extension
Adjustable Wheel Kit

1. Tripod articulation unit

Catalogue code: T&A002

35 mm hinge clamp for fast and simple connection between SAMI® Ecowood equipments and our tripods. The joint allows a full 180º rotation at 15º intervals.

2. Tripod with automatic brake

Catalogue code: T&A001

Max. height: 103,3”
Min. height: 70,87” / 1,85m
Max. height: 103,3 / 2,70m
Bottom section: 43,3” / 1,10m
Weight: 24,25 pounds / 11Kg
Max. load: 143,3 pounds / 65Kg

3. Tripod extension

Catalogue code: T&A010

Total length:53,94”
Effective extension: 51,18”
External diameter:1,77”
Internal diameter:1,38”
Weight: 35,93 pounds

4. Wheel kit without adjustable height

Catalogue code: T&010

3-wheel set (one for each leg of the tripod) with their corresponding mechanisms, to facilitate mobility of the set. Additionally, the height gain is slightly more than 3,9” / 10cm. Each one of the wheels has its own brake to immobilize the tripod during the treatment.

5. Wheel kit with adjustable height

Catalogue code: T&011

3-wheel set. Each wheel has its own brake to immobilize the tripod during the treatment. Because each leg can be set to the desired height, working on steps and uneven surfaces is possible; this guarantees the stability of the set. Additionally, if the supports are set to the topmost point, the height gain is slightly more than 9,8” / 25cm.

Measurement accessories:

These are sensors for simple measuring and monitoring of electromagnetic radiation, temperature and humidity.

Short waves Detection SystemDigital ThermometerWood Moisture Detector

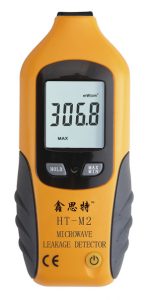

6. Shortwaves detection system

Catalogue code: ELECTRIC001

This detector measures electromagnetic power density emitted by electronic equipment.

This detector model is the most appropriate for use on SAMI® Ecowood equipment because of its simplicity.

A continuous beep indicates a high level of radiation. The beep will stop if we move away from the radiation source.

That is the distance to keep throughout the treatment.

7. Infrared thermometer

Catalogue code: SAMIEW0007

For instant surface temperature reading. The infrared thermometer comes with a laser to locate the measurement point. Current temperature is read and maximum temperature is registered along the measurement.

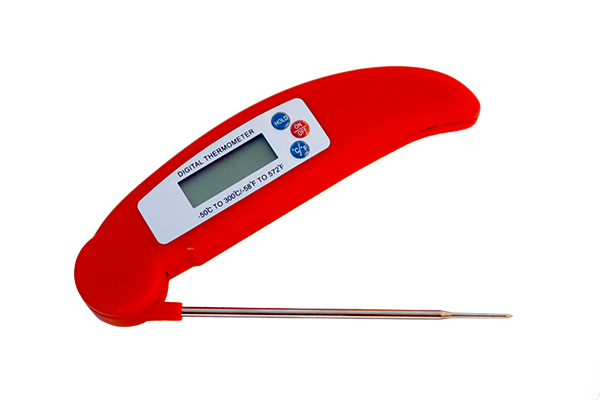

8. Digital thermometer with needel sensor

Catalogue code: SAMIEW0008

For interior temperature measurement. The thermometer features a needle or extended sensor that can be introduced inside a cavity on the wood.

9. Wood moisture detector

Catalogue code: T&A012

This device monitors the level of moisture in wood before and after the treatment with short waves. It is specially recommended for the treatment of objects with artistic value, historical pieces, etc. It works with the integrated 9V battery. It includes a practical sleeve for its transportation.
