Heat Bubble Easy

The revolutionary insect heat treatment

Heat treatment solution that allows plenty of space available for treating any object in hotels, homes and offices.

Heat Bubble works for bed bugs, wood worms, moths, termites and other xylophages, mites, fungus… virtually any kind of insects.

Heat bubble EASY version

Works on any household socket

  • No chemical usage

  • High capacity allowing treatment of several objects simultaneously

  • Quick and silent operation

  • No additional equipment

  • Light, foldable and easy to assemble

  • Does not require professional operators

Applications

  • Bed / Mattress

  • Furniture

  • Textiles

  • Mobile storage

  • Luggage

  • Decorative objects

Far Infrared Heating Technology

Heat Bubble technology is using the same heat principle of solar waves: The far infrared radiated heat is 100% safe for objects and as opposed to convection heat there is no waste of energy in heating the air.

Easy control device

Easy Control Device system allows the operator to manage the treatment temperature, start or stop the treatment at any time with a simple button. Using the Heat Wrap Easy version there is no learning-curve and totally intuitive process.

Case studies

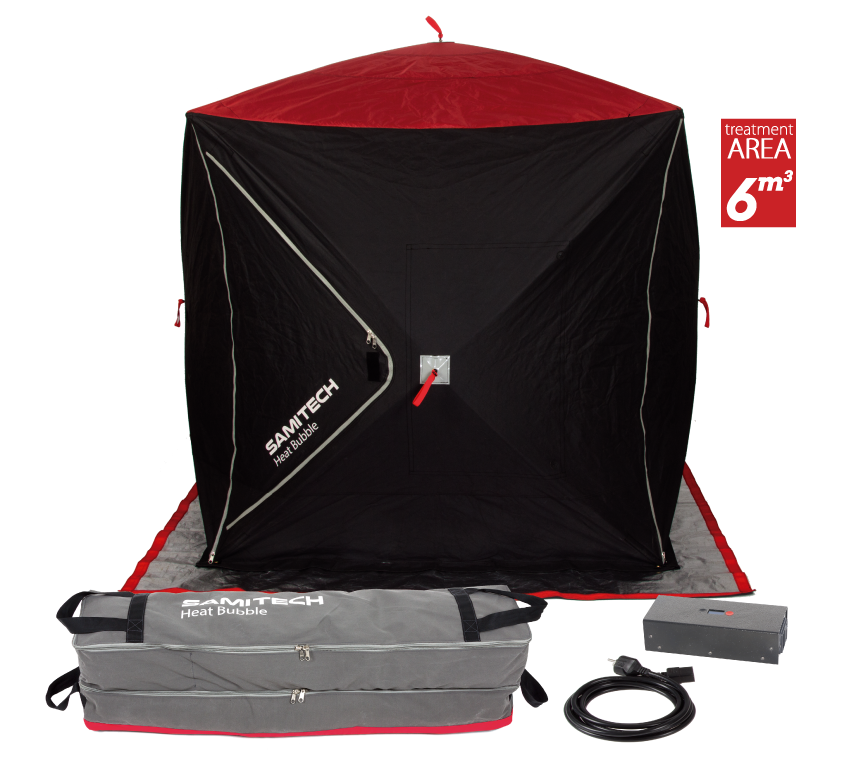

Heat bubble EASY version

Heat bubble Easy pack
Includes:
Bubble structure – base – heating panels x6 – easy control device – inlet power cord – support poles x2 – easy transport bag
Code:
STHBPACK6504 (240V)
STHBPACK6503 (120V)

Accessories and spare parts

Heating panel
code:
STHBHE240C
STHBHE120C
Dimensions:
90 x 60 cm

Inlet power cord
code:
STHBPC240
STHBPCUK

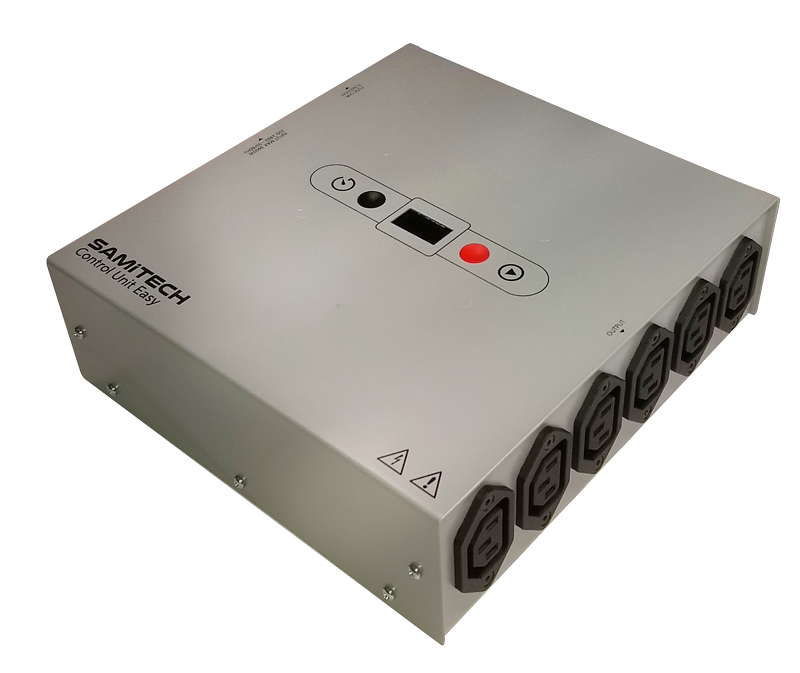

Easy control Unit

Easy control unit
6 channels
STSCD6240
3 channels
STSCD6120

Bubble structure
code:
STHBPODS
Dimensions:
180x180x205 cm

Base
code:
STHBBB

Support poles
code:
STHBSUP

Easy transport bag
code:
STHBETB

The bubble is made of a light and flexible material that acts as thermal reflector and insulator. Six heating panels located in the bubble’s internal sides generate the far infrared heat that kills insects by degrading their protein molecules.

When the Bubble is completely assembled and with the panels in place, insert the objects to be treated. There are two ways to place the objects inside the Bubble: Open a door on the front and back walls, or using the support poles to have a bigger entry.

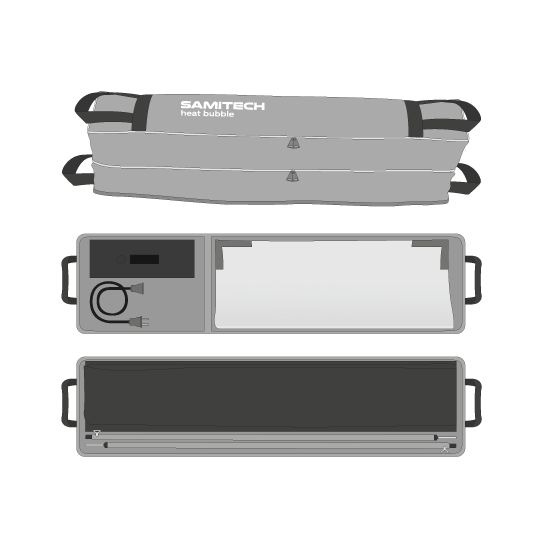

1. Open the Easy Transport Bag. Keep in mind it has two compartments

2. Unfold the Base over a clear floor. Make sur the black side be down

3. Open the bubble by pulling by the red strips

4. Place the Bubble over the base, sticking them with the velcro tape

5. Use the support poles to keep the Bubble open

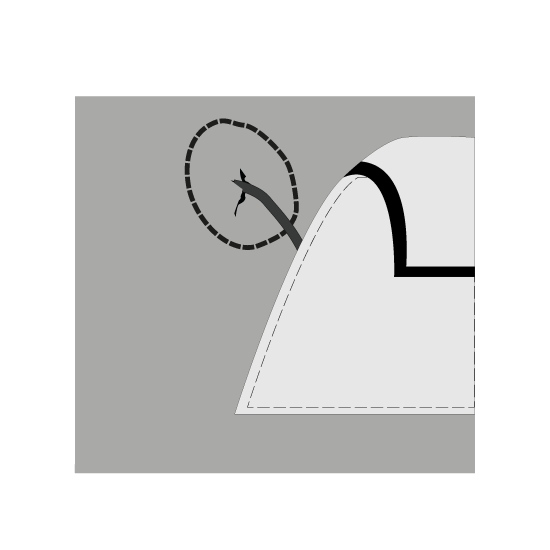

6. Pass the Heating Panel’s power cords through the holes in the Bubble’s walls

7. Stick the the Heating Panels with velcro tape on the Bubble’s walls.

8. Place the objects inside the Bubble

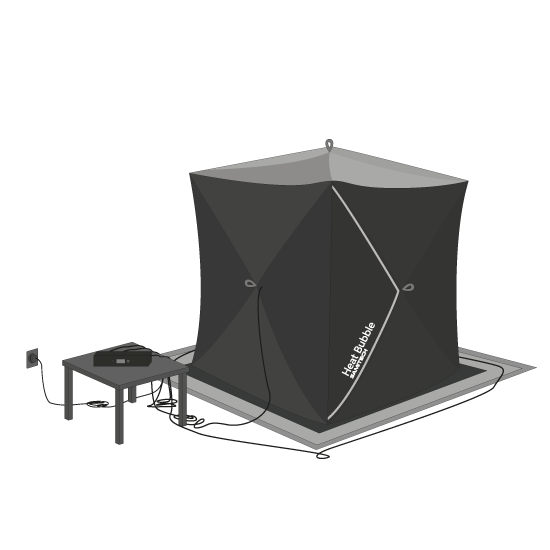

9. Close the Bubble using the zippers and place the Easy Control Device close to it

10. Connect the Easy Control Device to a energy socket

12. Switch ON the Easy Control Device

Easy transport bag

All the components of the equipment are carried in an easy transport bag specifically designed for this purpose, the Easy Transport Bag has two compartments.

When treatment is finished, the bubble must be properly bent and all components carefully introduced in the bag. This saves cost and improves logistics commuting to the place where the treatment is performed.
